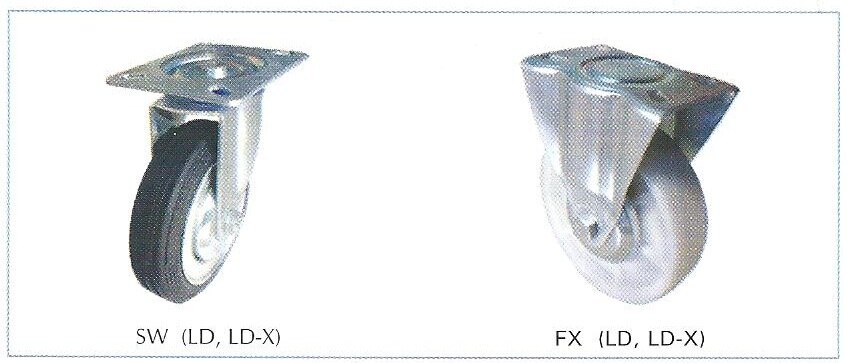

Light Duty Swivel Brackets [ SW(LD) ] & Light Duty Swivel Brackets with peg (i.e. stud or pin) for inserting in a pipe [ SW(LD-PG) ] are manufactured from tested M. S. plates ( IS : D-1079 ). Both base plate & revolving top are first blanked on a mechanical press & then formed on hydraulic press. The components are first buffed & then zinc plated for elegant look. Steel balls are accommodated in grooves formed on base plate & revolving top. The base & revolving top are assembled together with a king pin. Steel balls are provided between revolving top & washer below the king pin nut for smooth rotation of revolving top. Plastic ring is provided around the steel balls in order that outside dirt does not reach steel balls easily. Construction of peg type swivel bracket is similar to the plate type swivel bracket except that instead of a base plate, a cup is used to accommodate steel balls & the king pin is an integral part of the peg. Matching Light Duty Fixed Brackets [ FX(LD) ] are also manufactured from tested sheets [ IS : D-1079 ] by blanking on mechanical press & forming on hydraulic press. Sides of bracket are embossed for additional strength as well as for elegant look.
